Generation pipeline

How Marginalia turns the instruction panel into a new story part: the steps that build the prompt, how the prompt is fitted into the model's context, how the answer is streamed into the part, and the events extensions can use to change any of it. The code is in domain/service/impl/StoryGenerationServiceImpl.java and domain/service/impl/generation/.

Overview

flowchart TB
    UI["ManuscriptStoryPart<br/>Generate / Swipe / Regenerate"] -->|"generateNextTurn(book, TurnInput, GenerationRequest, GenerationListener)"| E
    subgraph E["GenerationEngine (generation threads)"]
        direction TB
        S1["1 PREPARE_GENERATION<br/>provider, protocol"] --> S2["2 PREPARE_CONSTANTS<br/>book prompts, user prompt"]
        S2 --> S3["3 PROCESS_LOREBOOK<br/>activate and render lore"]
        S3 --> S4["4 PREPARE_CONTENT<br/>summaries, story, system prompt"]
        S4 --> S5["5 PREPARE_PAYLOAD<br/>chat messages"]
        S5 --> S6["6 GENERATE_NEW_MESSAGE<br/>create / reset the part"]
        S6 --> S7["7 INFERENCE<br/>stream the answer"]
        S7 --> S8["8 CLEANUP<br/>finish, roll back on failure"]
    end
    S7 <-->|"streaming chat completion"| LLM["OpenAI-compatible API"]
    E -.->|"GenerationListener callbacks"| UI
    X["Extensions"] -.->|"addEventListener(Events.X, ...)"| E

The steps always run in this order. Any step can jump straight to CLEANUP (on an error, a validation problem or cancellation), and CLEANUP always runs last.

Starting a generation

CancellationToken token = storyGenerationService.generateNextTurn(
        manuscript,                                  // the book
        new TurnInput(scene, povCharacter, presentCharacters, instructions),
        GenerationRequest.newMessage(),              // or newSwipe(part), regenerate(part)
        listener);                                   // GenerationListener - UI callbacks

generateNextTurn is @NoTx and returns immediately with a CancellationToken; token.cancel() stops the generation. By default it must be called on a thread with a request (the UI thread): it captures the session in ThreadCopyRequestAttributes so the steps run as the user who started the generation (see The current user).

Generation options

The form above is a shortcut for generateNextTurn(manuscript, input, request, listener, GenerationOptions.defaults()). GenerationOptions(ai, protocol, context) lets a caller that is not the book window decide three things, each optional (null = the default):

If there is neither a request nor a context, the call throws IllegalStateException.

TurnInput holds the four fields of the instruction panel: sceneSetting, povCharacter, presentCharacters, instructions.

The engine

StoryGenerationServiceImpl holds the installed steps (from services-config.xml, one per GenerationStepType) and a cached thread pool (threads named Generation thread NNN). Each call creates a GenerationEngine, which implements GenerationController - the object every step works with:

Continuation style

The engine never blocks a thread while it waits - for event listeners, for a question to the user or for the model. Every step is written as a chain of callbacks: it emits an event and passes the rest of its work as the continuation, which the engine runs on a pool thread once all listeners are done:

protected void onStep(GenerationController controller) throws Exception {
    controller.emitEvent(Events.BEFORE_PREPARE_PAYLOAD, () -> {
        // ... build the payload ...
        controller.setPayload(payload);
        controller.emitEvent(Events.AFTER_PREPARE_PAYLOAD, controller::next);
    });
}

GenerationStepBase wraps each step: it enters the user's request scope, checks for cancellation and interruption, and turns any exception into listener.onError(e) plus a jump to CLEANUP. Continuations are wrapped the same way. forEachAsync iterates a list in this style (used for lorebook entries, which emit an event each).

The steps

1. PREPARE_GENERATION - PrepareForGenerationStep

Loads the book's inference provider (AI) and protocol and checks that both are set and that InferenceServices has an implementation for the provider type. (The steps get the service with forAIOrThrow: an AI of an extension that is not loaded ends the generation with the error that says to load it.) Otherwise the user gets Book is missing model. / Book is missing protocol. and the generation ends.

Events: BEFORE_PREPARE_GENERATION, AFTER_PREPARE_GENERATION.

2. PREPARE_CONSTANTS - PrepareConstantsStep

Fills a new PrePromptData with the parts of the prompt that don't depend on the story:

• the provider's jailbreak (if Needs Jailbreak is on) and its token count,
• the book's effective prompts - master template, POV, tense, style, user prompt - each resolved book → the folders above it → user settings → Defaults by ManuscriptService (resolve(book, PromptField), see Folders). The step that creates the new part writes the book back with ManuscriptService.update (it loads the stored book and sets only the global template variables and the active leaf), so settings changed, or a book moved to a folder, while the generation ran are not overwritten.

After AFTER_STATIC_TEMPLATE_DATA (where listeners may replace any of these), it renders the user prompt template with UserPromptData (the four TurnInput fields) into userPromptProcessed and counts its tokens. The first template rendering creates the generation's TemplateContext (see Template context).

Events: BEFORE_PREPARE_CONSTANT_DATA, AFTER_STATIC_TEMPLATE_DATA, AFTER_PREPARE_CONSTANT_DATA.

3. PROCESS_LOREBOOK - ProcessLorebookStep

Skipped when the book has no lorebook. Otherwise:

1. Collect lorebooks: the book's lorebook and, breadth-first, all its sub-lorebooks. Deleted and disabled lorebooks are skipped together with their sub-lorebooks; each lorebook is used once, so cycles are harmless. Each is loaded with LorebookService.fillEntries (entries with their effective tags) and detached.
2. Order entries of all collected lorebooks by ordinal (ascending), then by creation time.

3. Activate each entry - an entry is active when all of these hold:

   Check	Rule
   enabled	entry.enabled
   range of parts	fromMessage / toMessage are empty, or the number of the part the turn creates is inside them (both included): else OUT_OF_RANGE, whatever the rest says - the entry is also never a FILTER_NOT_MATCHED candidate of the scan of step 4. Checked only when the position is known (see below)
   negative tags	none of the entry's negative tags is a tag of the book
   tags	the entry has no tags, or one of them is a tag of the book (the entry's tags include the tags of its lorebook)
   filter	no filter, or the filter matches the rendered user prompt (for activationContext = INCLUDE_PARTS: the text of the newest activationParts parts of the branch, oldest first, then the user prompt, all joined by blank lines; see below): KEYWORDS_OR / KEYWORDS_AND - the filter split by commas, trimmed, blanks dropped; any / every keyword is a case-insensitive substring (no keyword never matches); TEXT - case-insensitive substring; REGEX - case-insensitive find() (DOTALL); an invalid regex never matches

   Before the entries are evaluated the step asks LorebookActivationService.partsNeeded (the largest activationParts of the enabled INCLUDE_PARTS entries, 0 when there is none) and reads that many parts with recentParts(activeLeaf, n, excludeLeaf): the non-blank response of the branch from the root to the active leaf, the newest n, oldest first (the leaf is left out for a swipe or a regeneration - it is the part being replaced). With 0 the story is not read. Each entry then takes the newest of the parts it asks for (evaluate(entry, tags, instructions, parts)); the scan of step 4 does not use the parts.

   The position of the turn is activationService.turnPosition(activeLeaf, excludeLeaf): the number of parts of the branch (blank ones included, like the outline) plus one, or - for a swipe or a regeneration (excludeLeaf) - the number of the leaf itself. The step asks for it only when positionNeeded(entries) (an enabled entry has a range), else it passes null and no range is checked (evaluate(entry, tags, instructions, parts, position)).

4. Scan (only with a scan depth): Lorebook.scanDepth of the lorebook the book uses (clamped to LorebookActivationService.MAX_SCAN_DEPTH, 5; the value of a sub-lorebook is ignored) is how many passes follow. Pass n takes the entries pass n - 1 activated (pass 0 is step 3), leaves out those with preventRecursion or no payload, and evaluates the entries whose verdict is still FILTER_NOT_MATCHED against the raw payloads of those (joined; templates are not run): evaluateInContent gives LORE_MATCHED, the detail being filter <- name of the first entry that has it. The pass ends the scan when nothing was activated. Each such entry gets PROCESS_LOREBOOK_ENTRY again (LOREBOOK_SCAN_DEPTH = n) and a verdict a listener replaced counts. The activated entries are in the order of step 2 whatever pass found them. LorebookActivationService.evaluateAll runs the same rules without events (the preview in the lorebook editor and /preview-lore-activation; they take the parts of the picked book / the part given with recentParts).
5. Render the active entries' payloads as templates with one shared LorebookTemplateData - so variables set in one entry are visible in the following ones. A payload that fails to render is used as it is.
6. Insert: payloads with IN_LORE_BLOCK are joined into backgroundLore (the master template's ``); payloads with BEFORE_USER_PROMPT are joined into backgroundUserLore and put in front of the user prompt.

Events: BEFORE_PROCESS_LOREBOOK, PROCESS_LOREBOOKS (the list in LOREBOOKS can be changed), PROCESS_LOREBOOK_ENTRY (once per entry, LOREBOOK_ENTRY; the entry is evaluated first and LOREBOOK_VERDICT holds the decision, a listener can replace it and the entry is used by the verdict that is left; LOREBOOK_SCAN_DEPTH is 0, and again for each entry a pass of the scan depth found, with its pass number), PROCESS_ACTIVATED_ENTRIES (ACTIVATED_LOREBOOK_ENTRIES can be changed; LOREBOOK_VERDICTS lists the final decision on every evaluated entry, used or not, with its reason), AFTER_PROCESS_LOREBOOK.

4. PREPARE_CONTENT - PrepareContentStep

Decides which part of the story goes into the prompt and renders the system prompt.

Summaries. The branch from the root to the active leaf is read, and the summaries on it are collected (oldest first) into SUMMARIES with SummaryService.collectBlocks: a meta summary replaces the summaries it merged, which are skipped, see the summary chain. Each summary stores a hash of the story it covers; when that was changed since, the summary is removed (a meta summary is unwound to the summary it replaced, which is checked in turn) and the user is asked whether to continue without it (listener.askQuestion). The newest part with a summary is the stop part: it and everything before it is represented by the summaries.

Token budget. With TokenLimits:

limit      = context tokens − response tokens        (smaller of protocol and provider limits)
baseTokens = system template rendered with lore and summaries (no story)
           + jailbreak + rendered user prompt + 100
reserved   = PrePromptData.reservedTokens            (set by extensions, 0 by default)

If baseTokens + reserved ≥ limit, the generation stops with Contextual limit not sufficient. Otherwise parts are taken from the newest backwards - skipping the part being regenerated, stopping at the stop part - starting from baseTokens + reserved and counting each part as its tokenCount + 100. A part is added only if the running total with it stays within limit − 256; the first part that doesn't fit ends the loop. The chosen texts, oldest first, become MANUSCRIPT_CHRONICLE.

Token breakdown. When the budget is computed, the step creates a PromptTokenBreakdown (domain.components) and puts it into the TOKEN_BREAKDOWN property. It holds the raw counts of each section - context, response and prompt limit, jailbreak, system template (the system prompt without lore and summaries), lore, summaries, story, lore in the user prompt, the user prompt and reserved - and what was cut: the parts that didn't fit (cutMessages, cutTokens), without the parts a summary replaces. The counts are measured separately, so they need not add up exactly to the payload.

Notes of the author. The open annotations with sendToPrompt are read once for the book (flaggedAnnotations). A part that is taken into the story brings its notes (AnnotationTexts.promptNotes: the passage in quotes, or the first words of the part for a note about the whole part, and the note), their tokens count against the room like the part itself, so a part whose notes do not fit is cut; the notes of the parts that made it become MasterTemplateData.annotations for the final render (the estimation render has none).

System prompt. The master template is rendered with MasterTemplateData (backgroundLore, summaries, annotations, narrativePov, narrativeTense, style + the template context) into systemPrompt. The estimate above renders it with a fork of the template context, so macros that change variables don't run twice.

Events: BEFORE_PREPARE_CONTENT, BEFORE_SUMMARIES (SUMMARIES can be changed), AFTER_MANUSCRIPT_CONCATENATION (MANUSCRIPT_CHRONICLE can be changed), AFTER_PREPARE_CONTENT.

5. PREPARE_PAYLOAD - PreparePayloadStep

Builds the chat completion messages:

system     jailbreak + "\n\n" + system prompt           (master template)
user       [ Generate story. ]
assistant  <oldest part in the chronicle>
user       [ Generate more story. ]
assistant  <next part>
...
user       lore before user prompt + "\n\n" + rendered user prompt

Earlier parts are sent as the model's own previous answers, each preceded by a short placeholder user turn. The final user message carries the instructions. Only the text of the parts is sent: the images attached to a part are not part of it and the model never sees them.

An LLMChatMessage can carry LLMAttachments (images, audio, files) for models that accept them, and the OpenAI compatible provider sends those of a user message as content parts. This step adds none; a listener of AFTER_PREPARE_PAYLOAD can put them on a user message. A message can also carry function calls (toolCalls, an assistant message) or be the result of one (LLMRole.TOOL with toolCallId); the pipeline builds none of them, they are added by OpenAICompatibleInferenceService when the model calls a function, see Function calls.

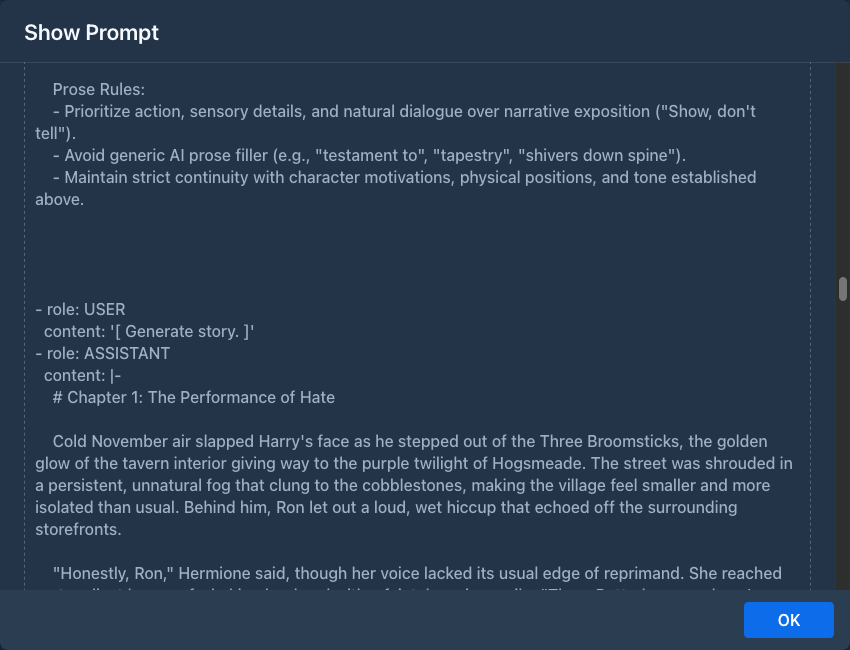

The payload is stored for the part (MessagePrompt) and can be inspected in the story editor with View prompt:

Events: BEFORE_PREPARE_PAYLOAD, AFTER_PREPARE_PAYLOAD (the payload can be changed; what is set here is what is sent).

6. GENERATE_NEW_MESSAGE - GenerateNewMessageStep

Prepares the part that receives the answer:

The part gets the TurnInput, the model and protocol names, the payload as JSON (stored as MessagePrompt.builtPrompt, shown by Show Prompt), the activated lore (MessagePrompt.backgroundLore) and the request time. The token breakdown gets the tokens of every message of the final payload (as listeners left it, counted with the provider's tokenizer) and is stored as the part's tokenBreakdown (shown by Token Usage, see UI). Parts generated before it existed have none, getTokenBreakdown() is null for them. Compare Prompt (PromptComparisonDialog) compares the stored payload of a part with that of an earlier part of the branch or a swipe (PromptComparison), to show where a prefix cache ends. The template variables of the generation are stored: local ones in the part's attributes, global ones in the book's. The part becomes the book's active leaf, both are saved and listener.onNodeCreated(part) lets the UI show it. The state stays NOT_SUCCESSFUL - until text arrives, the part is only a placeholder that cleanup removes or restores.

Events: BEFORE_GENERATE_NEW_MESSAGE, AFTER_GENERATE_NEW_MESSAGE (the part is available as getMessage()).

7. INFERENCE - InferenceStep

Counts the prompt tokens (when the prompt plus the response limit still exceeds the context, the UI gets GenerationListener.onWarning; the request is sent anyway), then calls InferenceService.stream(payload, protocol, callback) inside an InferenceSession of the kind GENERATION (a new part, a regeneration and a swipe share it, so the provider's cache is that of the story; the service sends it as the header X-Session-ID). For each chunk:

• reasoning chunks are appended to responseReasoning (REASONING_CHUNK_RECEIVED, the text in REASONING_CHUNK),

• response chunks are appended to response and to originalResponse (the text as generated, which later edits leave alone), with approximate token and word counts (CHUNK_RECEIVED, the text in CHUNK),

• the first chunk sets the time to first token, the first response chunk the end of reasoning,

• the part and the book are saved and the UI gets onReasoningChunk / onResponseChunk and onMetricsUpdated,

• once the response has some non-blank text, the state becomes PARTIAL_SUCCESS (reasoning alone doesn't count).

Listeners of the chunk events can change the chunk text before it is appended. The stream is pulled: the inference service delivers the next chunk only after the step calls continueInference(), so a slow listener slows the stream down instead of piling up chunks.

On completion the exact token counts are computed, the state becomes SUCCESSFUL (AFTER_INFERENCE) and the engine moves to CLEANUP. An error goes to CLEANUP too: a failure of the provider (InferenceException, see Services) is reported with onInferenceError (a default method of GenerationListener that calls onSimpleError; the story editor's listener also writes it to the session's problem log for the help assistant) and a localized text of what to fix, anything else with onError.

Usage counting

OpenAICompatibleInferenceService counts every request in the Usage of the user who started it, so the generation, summaries and extensions that call stream are all counted without doing anything. The request carries stream_options.include_usage (unless the AI's additional parameters set stream_options), and the provider's last chunk then reports the prompt and completion tokens. Without a report (the provider doesn't send it, or the request was stopped) the service counts the payload and the text that arrived with countTokensApprox. It is recorded once, when the stream completes, is stopped (terminateInference, cancellation) or fails after some text arrived; a request that fails before any text is not counted. The stream threads have no request, so the service takes the ThreadCopyRequestAttributes of the thread that called stream and records inside it (currentUser resolves).

The same request is counted for the book it was made for (the tokens column of the writing statistics): the caller opens a UsageContext (a thread-local scope like UnmeteredScope, try (UsageContext _ = UsageContext.open(book)) { service.stream(...); }) around the call that starts the request; OpenAICompatibleInferenceService reads UsageContext.current() once in that thread, keeps the id of the book in its Request and opens it again around UsageService.record in the stream threads. UsageServiceImpl.record then adds the tokens (StatisticCounts.tokens, one request) to the day's row of the book through ManuscriptStatisticService.count, whoever the user is: the row is the owner's of the book, and a thread without a user counts for the book too. A call without a context counts for the AI only. The generation (InferenceStep), summaries, impersonate, redraft, annotate (all its stages) and the agent runs (the working copy, see the agents note of the statistics) open it; an unmetered request counts for nobody. An extension AI does what the Anthropic and Google plugins do: reads UsageContext.current() in the thread that starts the request and reopens it around its UsageService.record; a plugin that asks a model for a book opens the scope around its call.

The same context decides the generation time of the book (the GENERATE stretches of the ActivityTracker): OpenAICompatibleInferenceService registers the request with ActivityTracker.generate(book) when a metered request has a book, from before it is sent to the end of its answer, the stop or the failure (a request with function calls registers each round on its own: the time the functions take between the rounds is not the model's, and the tracker keeps the stretch open for 2 s so the next round of an agent joins it). An extension AI has no hook for it yet.

Before a request is built, stream asks AILimitService.check(ai, promptTokens, reservedTokens) (with our estimate of the payload and the response size the request reserves): a user with the AI not available or over their token limit gets an InferenceException (NOT_AVAILABLE, LIMIT_REACHED) in the caller's thread and nothing is sent, so the steps, summaries and extensions handle it like any provider failure. The limits are described in the domain model.

8. CLEANUP - CleanupStep

Always the last step. It also records the version of the text in the history of the part (MessageRevisionService.record: GENERATE for a new part, REGENERATE for a regenerated one, with "model · protocol" and the reasoning), also for the text that arrived before a stop or an error; a generation that produced nothing records nothing. Regenerate calls ensureCurrent before it clears the part, so the text that is replaced is in the history. See Version history. Depending on the state:

Events: BEFORE_CLEANUP (its listeners do not run when the user stopped the generation, like those of every event) and AFTER_CLEANUP, the last event of every generation: it is emitted when the cleanup is done, also when the cleanup itself failed, and its listeners run also when the generation was stopped or interrupted (Events.isTerminal()). Before the cleanup starts the step sets OUTCOME (GenerationOutcome: COMPLETED; CANCELLED when the user stopped it - that wins over an error the stop caused; otherwise FAILED) and, when an error was reported to the user (onError, onSimpleError, onInferenceError of the GenerationListener; the engine wraps the listener in a FailureTrackingListener, so it does not matter which step reported it), FAILURE (GenerationFailure: the first message and the exception). getMessage() of the event is the part with the text that arrived, null when it was removed. The listener of the caller (onComplete, onCancelled) has been told by then.

Prompt data

PrePromptData (generation/dto/) collects the prompt as the steps build it:

Template context

All templates of one generation - user prompt, lorebook entries, master template - share one TemplateContext (GenerationProperties.TEMPLATE_CONTEXT), created by GenerationStepBase.getTemplateContext on first use. It holds what the macros read: the TurnInput fields, POV / tense / style, the book's name and description, the model name and token limits, the generation type (normal, regenerate, swipe), the story so far (``...), the last instructions and time, the latest summary, and the variables - local ones loaded from the last part of the branch, global ones from the book. Because it is shared, a variable set in the user prompt is visible in lore entries and the master template. See Templating & macros.

Events for extensions

Extensions hook into generation by registering listeners:

Registration registration = storyGenerationService.addEventListener(Events.PROCESS_ACTIVATED_ENTRIES,
        (event, chain) -> {
            try {
                List<LorebookEntry> active = event.getProperty(GenerationProperties.ACTIVATED_LOREBOOK_ENTRIES);
                active.removeIf(entry -> entry.getName().startsWith("[off]"));
            } finally {
                chain.next();                 // always - otherwise the generation never continues
            }
        });

// in onExtensionUnload
registration.unregister();

Rules:

• Call chain.next() exactly once in every listener, also when it fails. chain.terminate() skips the remaining listeners of this event and continues the generation; event.terminateEvents() marks the event so the remaining listeners are skipped when next() is called. A listener that calls neither leaves the generation hanging.

• A listener may call next() later, from another thread - for example after an asynchronous request of its own.

• An exception thrown by a listener is logged and the chain continues with the next listener.

• Listeners are global: they receive the events of every generation of every user. Use event.getManuscript() and the current user to decide whether to act, and keep per-generation data in event.getProperties() under a key prefixed with the extension's package.

• Listeners run on generation threads inside the user's request scope, so services work; UI changes need ui.access(...).

• Unregister on unload - registrations are not removed automatically.

To only watch an event, most of all a hot one such as CHUNK_RECEIVED, register an observer instead: storyGenerationService.addEventObserver(Events.CHUNK_RECEIVED, observation -> ...) (GenerationObserver, returns a Registration too). It is called synchronously on the thread that emits the event - for a chunk the thread of the inference stream - before the listeners of the event, so it costs no hop to another thread and takes no part in the chain (no chain.next()). It gets a read-only GenerationObservation (event, getRunId(), manuscript, AI, protocol, message, request, input and an unmodifiable view of the properties), sees the values as the step produced them (a chunk before the listeners changed it) and is also called for a generation that was stopped. It must return quickly, because the generation waits for it, and must not need a request context. What it throws is logged and ignored.

The bundled Author's Note plugin is a complete example: it reserves tokens in BEFORE_PREPARE_CONTENT (PrePromptData.reservedTokens) and inserts a message into the payload in AFTER_PREPARE_PAYLOAD, see Generation events.

Events

RUN_ID (a random UUID, set before the first event) is in every event of a generation: extensions that keep data per generation key it by this, generations run at the same time.

"Read back" means the step reads the property again after the event, so listeners can replace or modify the value. GenerationProperties documents each key.

Cancellation and errors

• Stop in the UI calls CancellationToken.cancel(). Every step, continuation and chunk checks the token and jumps to CLEANUP, which keeps what was generated so far (PARTIAL_SUCCESS) - or, when nothing arrived yet, removes the new part or restores the regenerated one, like after an error. Only CLEANUP reports the end to the listener.

• Errors - an exception in a step or continuation, a failed request - are reported with GenerationListener.onError and also end in CLEANUP. Validation problems (no provider, context too small) use onSimpleError with a localized message; failures answered by the provider (wrong key, context too long...) use onInferenceError, which does the same unless the listener overrides it.

• Questions - listener.askQuestion(text, yes, no) lets a step ask the user and continue in one of two continuations (controller.wrapCallback(...)); used for invalidated summaries.

Changing the pipeline

• Small changes (prompt wording, lore filtering, post-processing the answer) - an event listener in an extension is usually enough; see above.

• Replacing a step - installedSteps in services-config.xml lists one implementation per GenerationStepType. A replacement must emit the same events and properties, call next() / jumpTo() exactly once per path and set the controller state the later steps expect.

• A new step needs a new GenerationStepType value at the right position (the order of the enum is the order of execution) and an entry in installedSteps. Steps without an implementation make the generation report NOT IMPLEMENTED.

Testing

generation/LorebookActivationTest, GenerationRequestTest, BuiltPromptHistoryTest (which parts of the story are in the prompt for a new part, a swipe and a regenerate), ReservedTokensTest (reservedTokens), FailedGenerationTest (the cleanup rules above) and MetaSummaryTest run real generations against MockLLMServer, an OpenAI-compatible fake with scripted answers, and inspect the request the model received (InferenceCollector) and the parts that were stored. GenerationTestBase / GenerationRun start a generation and wait for it to finish. See Testing.
